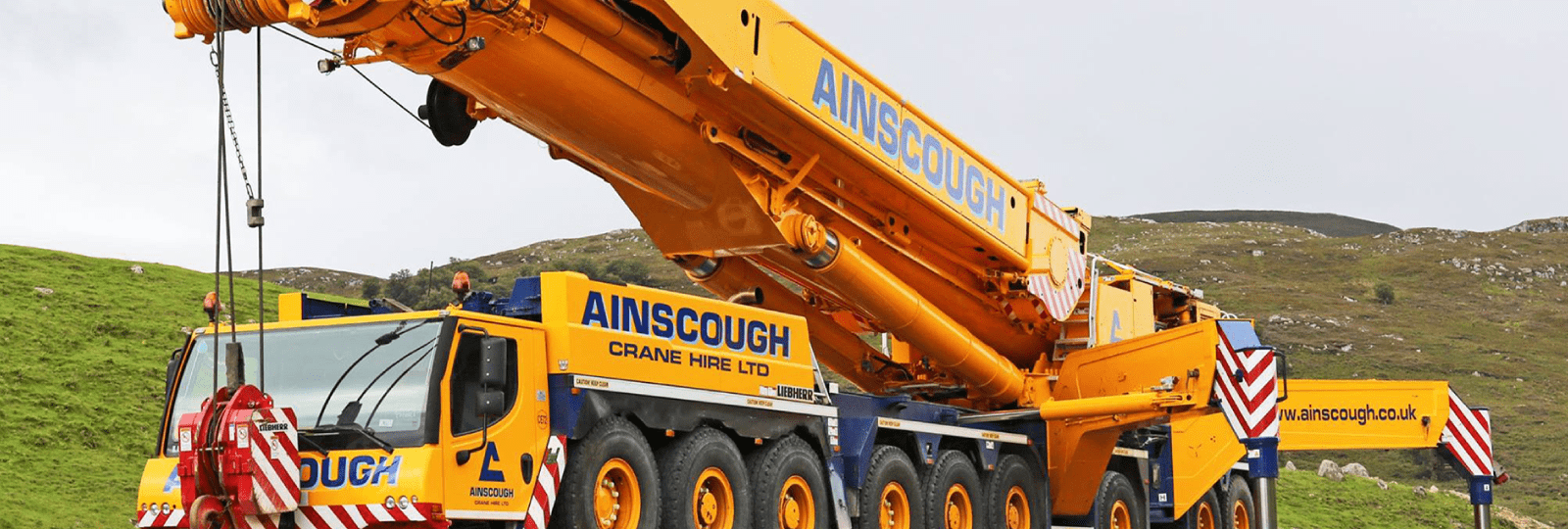

LTM1750-9.1 All-terrain Mobile Crane
Significantly more powerful LTM1750 – 9.1 upgrade to 800t
Scroll Down to discover more

LTM1750-9.1(800T) MOBILE CRANE

The LTM1750-9.1(800T) all-terrain mobile crane with 800t upgrade can now hoist even heavier loads. This flexible crane delivers even more lifting capacity, which makes this crane significantly more powerful. The use of refined static calculation methods means that lifting capacity values have been increased across almost the entire working range. This has converted the crane into an 800-tonne machine. The 9-Axle can carry its complete telescopic boom for driving on public roads.

The new lifting capacity tables also contain a table with the nominal maximum lifting capacity of 800 tonnes. The LTM 1750-9.1 has received updates to the crane software with the new tables.

The latest upgrade enables the LTM 1750-9.1 to break into a higher lifting capacity class due to the new luffing jib configuration used for wind power work. So, for example, more than 10 tonnes of additional lifting capacity can be generated for rail, infrastructure projects, erecting wind turbines on 90 and 100-metre towers. The LTM 1750-9.1 is also significantly more powerful for heavy-duty hoists. One example of this is loading transformers into ships with normal working radii of 12 to 16 metres. The additional lifting capacity in these cases exceeds seven tonnes.

Book A Site Survey
Book A Site Survey
Book Site Survey - Mobile
Acceptance *
reCAPTCHA
Safe Lifting Calculator
Safe Lifting Calculator
Safe Lifting Calculator - Mobile
Acceptance *
reCAPTCHA
This calculator is only to be used as a guide to the crane required, all aspects of this calculator are for guidance purposes only

LTM1750-9.1(800T) BENEFITS

  • Extended maximum lifting capacity now 800t
  • Fast, easy setup with small space requirements due to self-erection.
  • Flexible support system – Variobase
  • Variable steering concept
  • Increased flexibility – wind applications and safety by using lifting capacity tables with different maximum wind speeds
  • Y guy
  • Optimised for the installation of rail, infrastructure projects, wind power plants & turbine’s

Crane Specification

LTM1750-9.1 (800t) – MOBILE CRANE

MAX. LOAD CAPACITY

800t

Telescopic Boom from/UP to

16.3M-52m

MAX. RADIUS

112M

MAX. Hoist HEIGHT

154M

NUMBER OF AXLES

9

TOTAL BALLAST

204.00T

Download Specification Guide

KEY INFORMATION

  • Extended maximum lifting capacity now 800t

    The 800 t upgrade delivers even more lifting capacity.

  • FAST Set up:

    Fast, easy setup with small space requirements due to self-erection. The all-terrain crane is designed to ensure particularly short setup times and maximum mobility.

  • Completely flexible

    Flexible support system using VarioBase®, and therefore enhanced safety. With the variable Supporting Base Variobase each individual crane support can be positioned differently.

    More capacity at larger working range – The variobase offers higher capacities and a larger working range for operations with partial ballast also at maximum support base.

  • Variable steering concept

    Suitable for national mobility, to any site thanks to a wide range of configurations for driving on roads

  • Increased flexibility

    Wind applications and safety by using lifting capacity tables with different maximum wind speeds

  • Y guy

    The crane achieves significant increases in lifting capacity using its Y-guying

  • Rail, Infrastructure Projects, Wind and Power Plants

    Optimised for the installation of wind power plants & turbine’s and work on rail and infrastructure projects.
